Digilive 16RS

Description

The DIGILIVE 16RS is designed to be quick, simple and intuitive to use. In addition to the 7-inch high-resolution touch-screen where you can access all your features, I/O options and effects, the mixer features full digital rotary encoders that can recall scene settings at a moments notice. Full control is also available remotely via Wi-Fi using your iPad so you are free to mix anywhere in the venue.

INTELLIGENT USER INTERFACE
> simple to use 1024 x 600 7″ touchscreen with clear and informative graphics
> clear visual representation of all channel and mixer settings
> use either touchscreen or encoder to adjust any setting
> 100mm motorized faders, with one touch layer selection
> solo, mute and channel select buttons for each channel

MIXING MADE EASY
> input and output channel metering is clear with the high definition screen
> both input and output levels clearly displayed
> pre and post fader metering

RECORDING AND PLAYBACK
> built in media player and recorder
> playback from either USB
> record from any smart output

SMART OUTPUTS

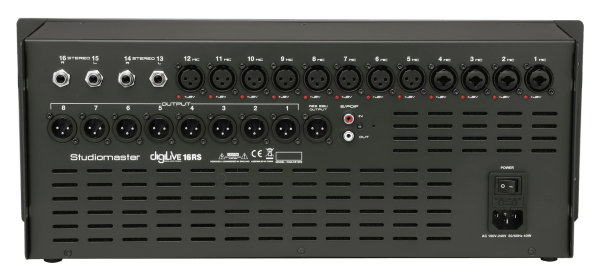

> 16 internal busses with 8 balanced XLR outputs
> comprehensive routing facilities to maximize mixer flexibility
> simple and clear selection and routing

ADVANCED ALGORITHMS
> 4 band fully parametric EQ
> each band adjustable between 20Hz and 20kHz
> variable gain and Q, and ability to save EQ library presets
> automatic real time analysis (RTA) on 31 band graphic equalizer

DYNAMICS AND EFFECTS ON EVERY CHANNEL
> fully adjustable gate and compression
> 4 stereo effects available with reverb, delay, modulation and 31 band graphic EQ
> simple to use and informative visual representation of effect or dynamic
> depth and gain reduction metering for accurate adjustment
