Description

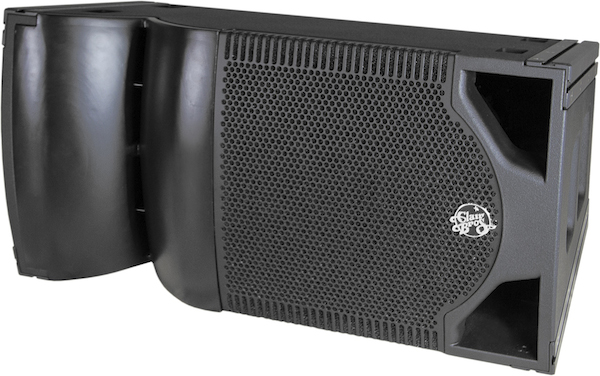

kiTCURVE12+ is a full range, curved array high output loudspeaker ideal for speech and music reproduction. The kiTCURVE12+ is one of Clair Brothers most versatile full range speakers. kiTCURVE design technology is rooted in Clair Brothers CAT (Curved Array Technology). The kiTCURVE combines the array ability of the CAT with the portability and versatility of the kiT Series. Exceptional intelligibility, high output performance and durability make the kiTCURVE12+ an excellent choice for virtually any indoor or outdoor application. The kiTCURVE12+ has been engineered for optimal individual performance or as part of a multiple cabinet system with added flexibility to mount vertically or horizontally, or on pole mount with subwoofer base. The cabinet features a custom OEM 12” transducer and two 1.4” exit/3” voice coil diameter high frequency drivers coupled to a 90º H x 15º V constant curvature, constant directivity horn that delivers naturally smooth uniform coverage in both near-field and medium throw applications. Multiple cabinets may be arrayed, up to 5 high when flown, to create a seamless vertical coverage of 75°. The kiTCURVE12+ is powered by an integrated 2 ch. 3200W power amplifier module that includes internal DSP loudspeaker processing: Xover, EQ and Limiter. The processing is factory programmed and provides the user with the choice between four presets that are specifically designed for various applications and array configurations. Amplitude shading of high frequency output for array applications is integrated into the factory presets. (See kiT+ Power Module for detailed specifications on amplifier and DSP modules). For a cabinet of its size the kiTCURVE12+ offers extremely efficient low-end response to 51Hz. As with all Clair Brothers products, the kiTCURVE12+ is constructed of the finest Baltic birch and finished with a rugged polyurea coating to withstand the most demanding conditions. The speaker grille is constructed of high grade 14 gauge perforated steel with a powder coated finish. Options & Accessories Rigging Accessories kiTCURVE12 – Non-Powered BiAmp Model with EP-4/Terminal Strip Connectors kiTCURVE12-TrueFit – Custom Configured Variable Waveguides RC-kiTCURVE12 – Clamshell ATA-style road case for (2x) kiTCURVE12 kiT-Sub+ – Rigging/Stacking Companion Subwoofer kiT-Sub-mini+ – Rigging/Stacking Compact Powered Companion Subwoofer G
