Description
Analog mixer. 2 mono channels + 1 stereo channel. USB/SD player/recorder. Bluetooth. Effects. +48V phantom power.

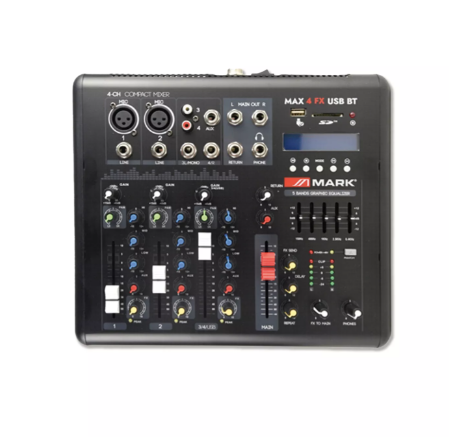

The MAX 4 FX USB BT is an audio mixer with two mono MIC/LINE channels and one stereo channel. Its MIC/LINE input channels include phantom power for condenser microphones. The MAX 4 FX USB BT features an audio player and recorder via USB/SD port, Bluetooth connectivity, built-in effects, three tone controls per channel, a 5-band stereo graphic equalizer on the master channel, send/return connections, a headphone output, and balanced master outputs.
- Audio player/recorder.
- Effects processor.
- +48V phantom power supply.
- Bluetooth, USB and SD.
- Product dimensions (m) 0.25 x 0.29 x 0.04
| nput channels | 2 Mic/Lin mono, 1 stereo/ 2 Mic/Lin mono, 1 stereo |
| Gain range | +10 to +50 dB |
| Maximum output level | +28 dBu |
| Equalization | 12 KHz ± 15 dB, 3 KHz ± 15 dB, 80 Hz ± 15 dB |
| Phantom Power | +48 V |
| Feeding | AC 100-240 V 50/60 Hz / DC ± 15V / 48V (External power supply included) |
| Dimensions | 285 x 250 x 40 mm |
| Weight | 3 Kg |
| Other functions | USB/SD audio player/recorder, Bluetooth, headphone output, effects processor |
