Description
AUDIO INTERFACE AND MIXING CONSOLE
8 inputs (4mic/2stereo) with 2 track (stereo) USB recording
Multiple in/out choes-2x Stereo inputs
TRRS AUX input with me-minus, control live calls in podcasts or livestreams
Professional MIC/LINE level inputs

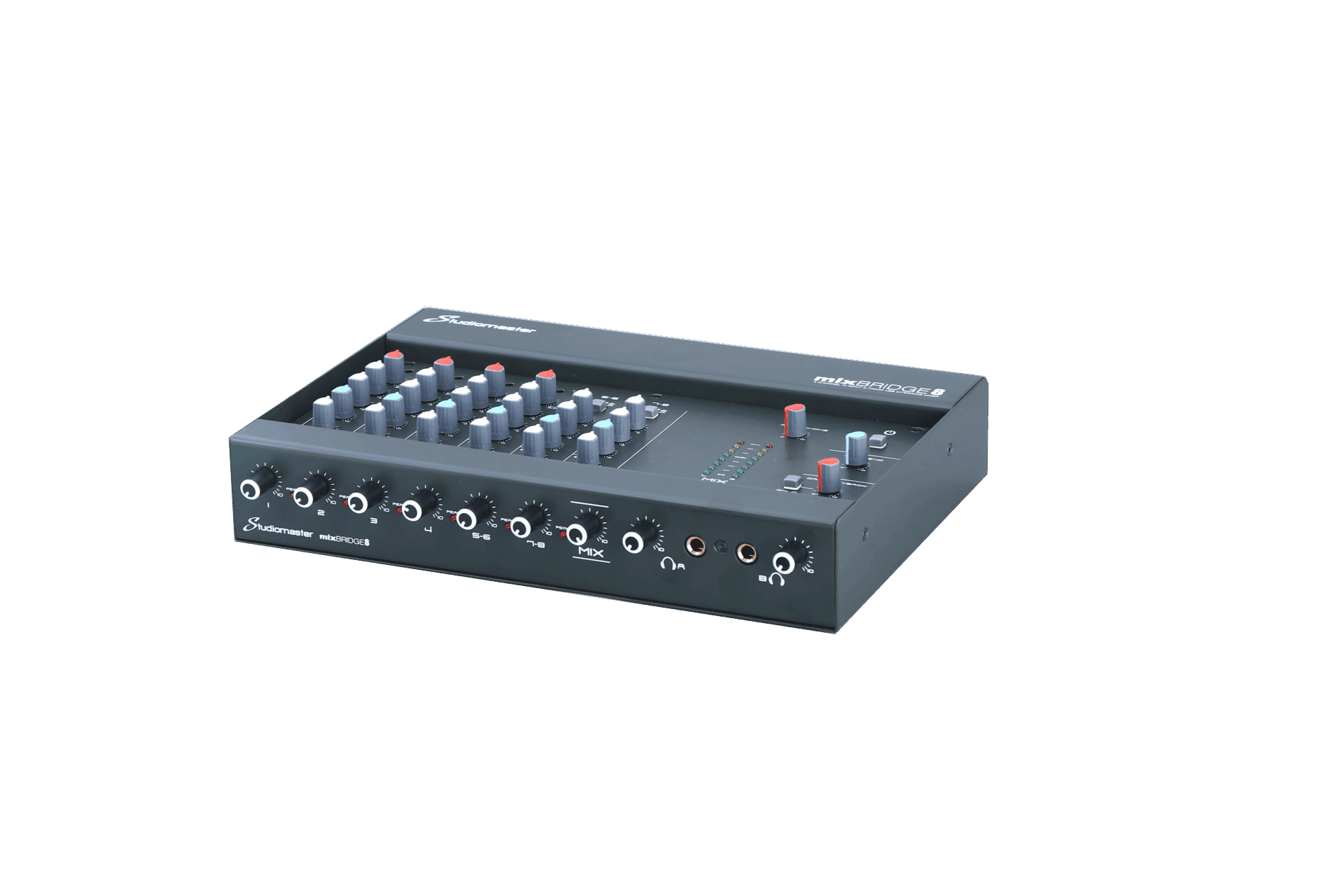

The mixer is compact and lightweight, with external DC12V power supply, 2-4 CH mic inputs and 2 CH stereo inputs. Among them, the microphone 1/2 channel adds high impedance input function. lt is convenient for guitar playing, built-in professional USB interface, which can connect computer playback and recording, and the mixer also has a live broadcast function. lt can connect mobile phone live, tiktok, etc., and has comprehensive professional characteristics. No matter solo, recording or performance can satisfy the application requirements.
| USB Output | 2 track (L-R) |
| USB Input | 2 track |
| USB Sampling rate | 24bit/48kHz |
| MIDI Interface | n/a |
| MIC/LINE Inputs | 4 x COMBO (4 x mic / 2 x line / 2 x hi-z) |
| Phantom Power | +48V all mics individually switched |
| Stereo Inputs | 4 x 1/4″ (6.35mm) jacks |
| Channel EQ | 2 band HI / LO |
| AUX/PHONE Input | 1 x 1/8″ (3.5mm) TRRS (mix-minus) jack |
| MIX Output | 2 x 1/4″ (6.35mm) balanced jacks |
| AUX/MONITOR Output | 1 x 1/4″ (6.35mm) mono jack |
| MIC Gain | +6dB to +50dB |
| LINE Gain | +10dB to -34dB |
| MIC EIN | <-100dB |
| Frequency response | 10Hz – 20kHz +1/-3dB |
| THD | <=0.03% |
| S/N Ratio | 80dB |
| Output Level | MAX +20dB (unbal/balanced) |
| EQ HI Frequency | 12kHz (+/- 15dB) |
| EQ LO Frequency | 80Hz (+/- 15dB |
| Power Supply | 12V DC external PSU |
| Dimensions (W x H x D) | 310 x 55 x 210mm |
| Net Weight | 2.5kg |
