Description

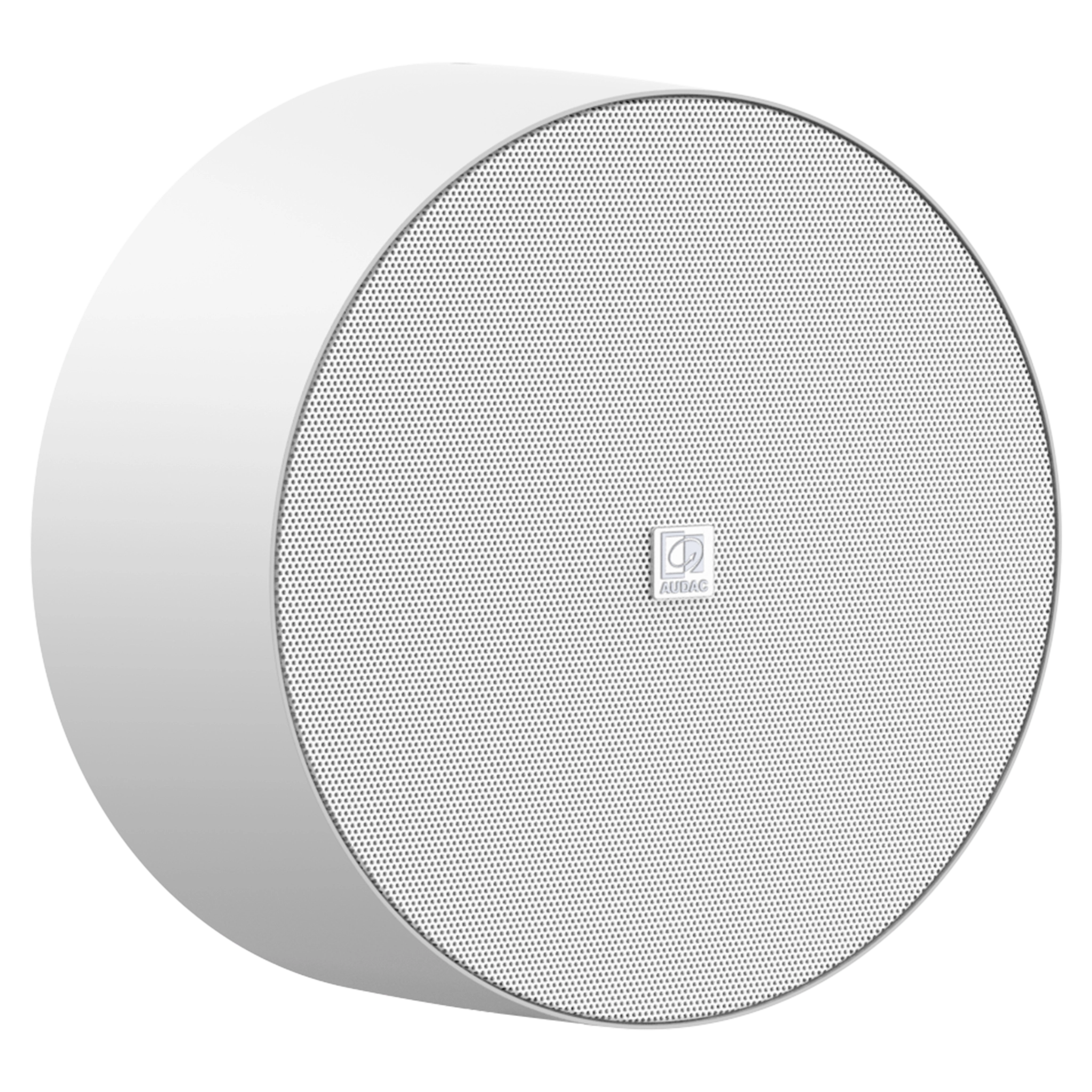

The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tapings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through Snap Connect™ terminals, offering a faster, more reliable and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colors (Black /B & White /W) to blend in with any residential, commercial or industrial environment.
| System specifications | ||||
|---|---|---|---|---|
| Peak power handling | 40 W | |||
| Program power handling | 20 W | |||
| Continuous power (AES) | 10 W | |||
| Sensitivity (1W/1m) | 96 dB | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 106 dB | ||
| Speaker type | Broadband | |||
| Connection | SnapConnect™ | |||
| Drivers | 6.5” Full Range | |||
| Volume control | Integrated rotary volume controller (only NELO706V) | |||
| Frequency | Response (± 3 dB) | 100 Hz – 15 kHz | ||
| Range (-10 dB) | 70 Hz – 18 kHz | |||
| Line Transformer Tappings | 1 | 833 Ω – 100 V / Not used – 70 V / 6 W | ||
| 2 | 1667 Ω – 100 V / 6 W – 70 V / 3 W | |||
| 3 | 3333 Ω – 100 V / 3 W – 70 V / 1.5 W | |||
| Dispersion | Conical | 140° | ||
| Product Features | ||||
|---|---|---|---|---|
| Colours | Black & White | |||
| Front finish | Steel grill | |||
| Construction | ABS | |||
| Mounting | Wall/Ceiling mounting (two screw holes) | |||

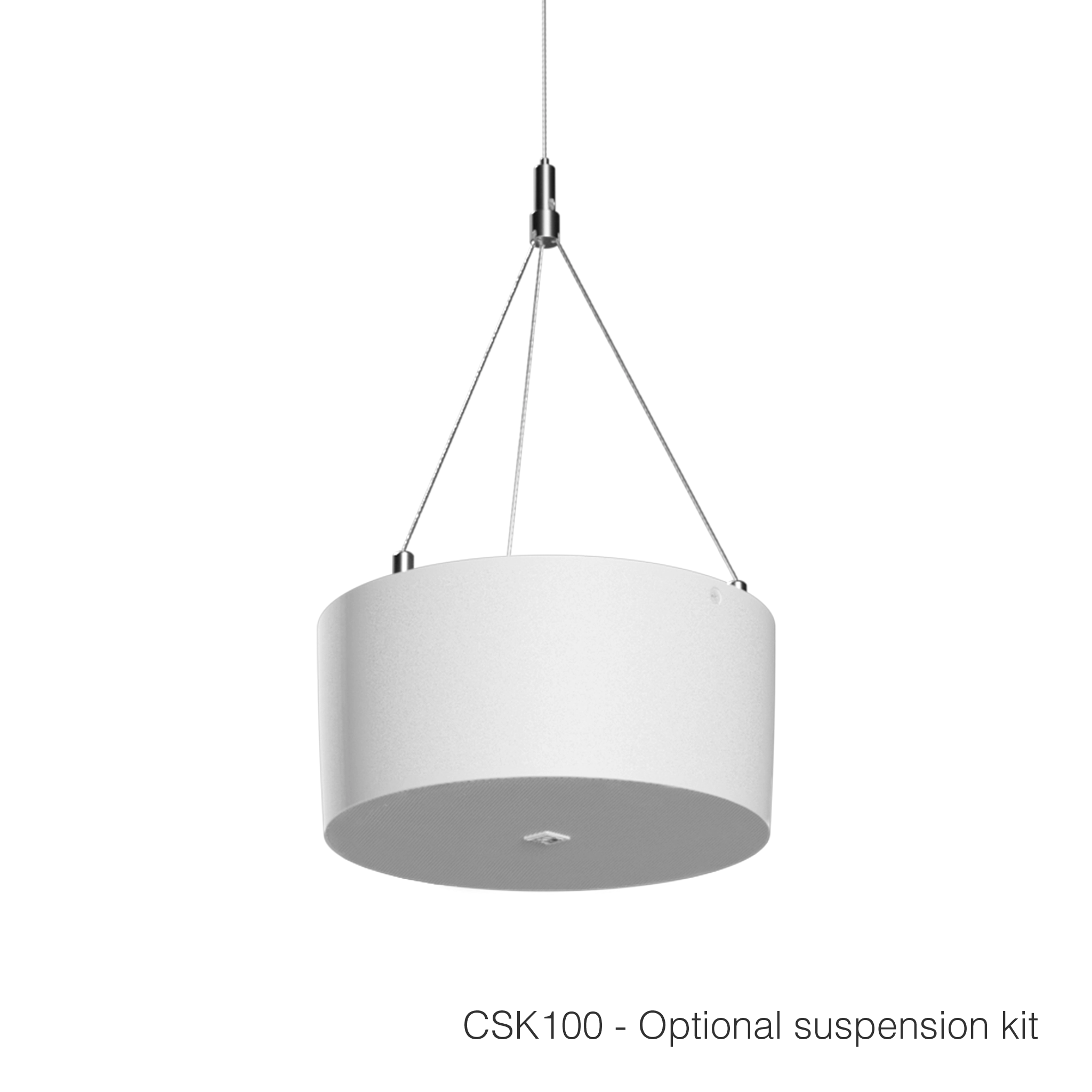

| CSK100 ceiling suspension kit (optional) | ||||
| Colours | White (RAL9003) (NELO706/W) | |||
| White (RAL9003) (NELO706V/W) | ||||
| White (RAL9016 grill + RAL9003 housing) (NELO706I/W) | ||||
| White (RAL9016 grill + RAL9003 housing) (NELO706VI/W) | ||||
| Black (RAL9005) (NELO706/B) | ||||
| Dimensions | 206.5 x 95 mm (Ø x D) | |||
| Operating temperature | -25 °C ~ 70 °C | |||
Highlights
- Minimalistic and elegant housing
- With or without volume controller
- High intelligibility and sound accuracy
- Connection through Snap Connect™ terminals
- Diverse mounting possibilities
- Optional suspension kit (CSK100)
Applications
- Residential
- Retail
- Hotels
- Corporate
