Description
15″ 2-Way Active Loudspeaker with Bluetooth®

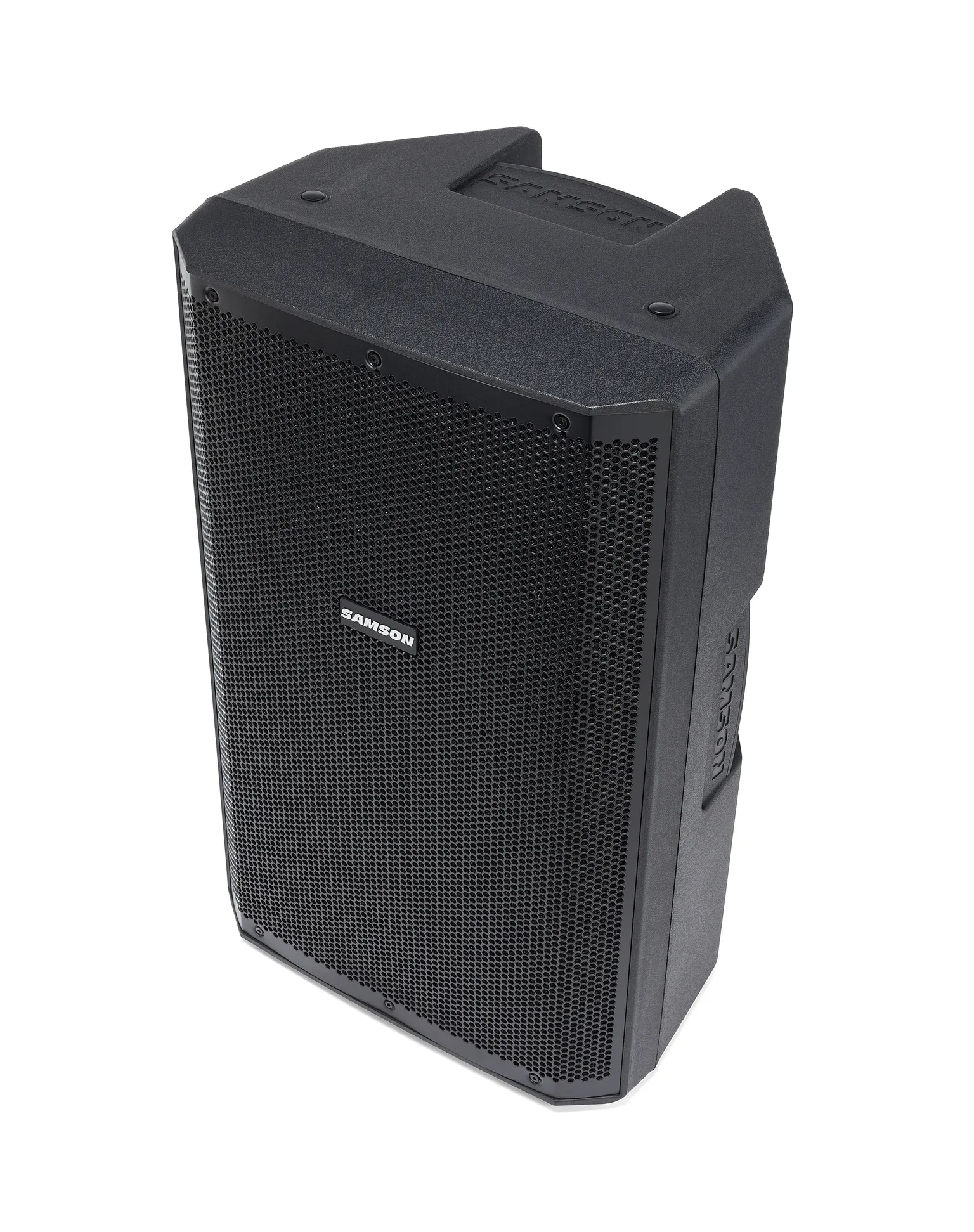

The RS115A 400W 2-way active loudspeaker brings powerful, versatile, and convenient sound reinforcement to a wide range of audio applications. Easy to transport and set up, this powerful speaker features an onboard mixer with mic/line input options, Bluetooth® audio streaming, and a USB wireless port for connecting Samson XPD Series wireless microphone systems
Featuring a bi-amplified design (separate high and low frequency amplifiers), the RS115A offers greater efficiency, more accurate sound and an impressive 400 watts of power. This power is delivered by a 15″ extended-range woofer with a large 2.5″ voice coil that provides excellent coverage and clarity, while keeping the low end tight and punchy. Meanwhile, its 1-inch tweeter adds smooth, crisp highs to create a balanced sonic image.

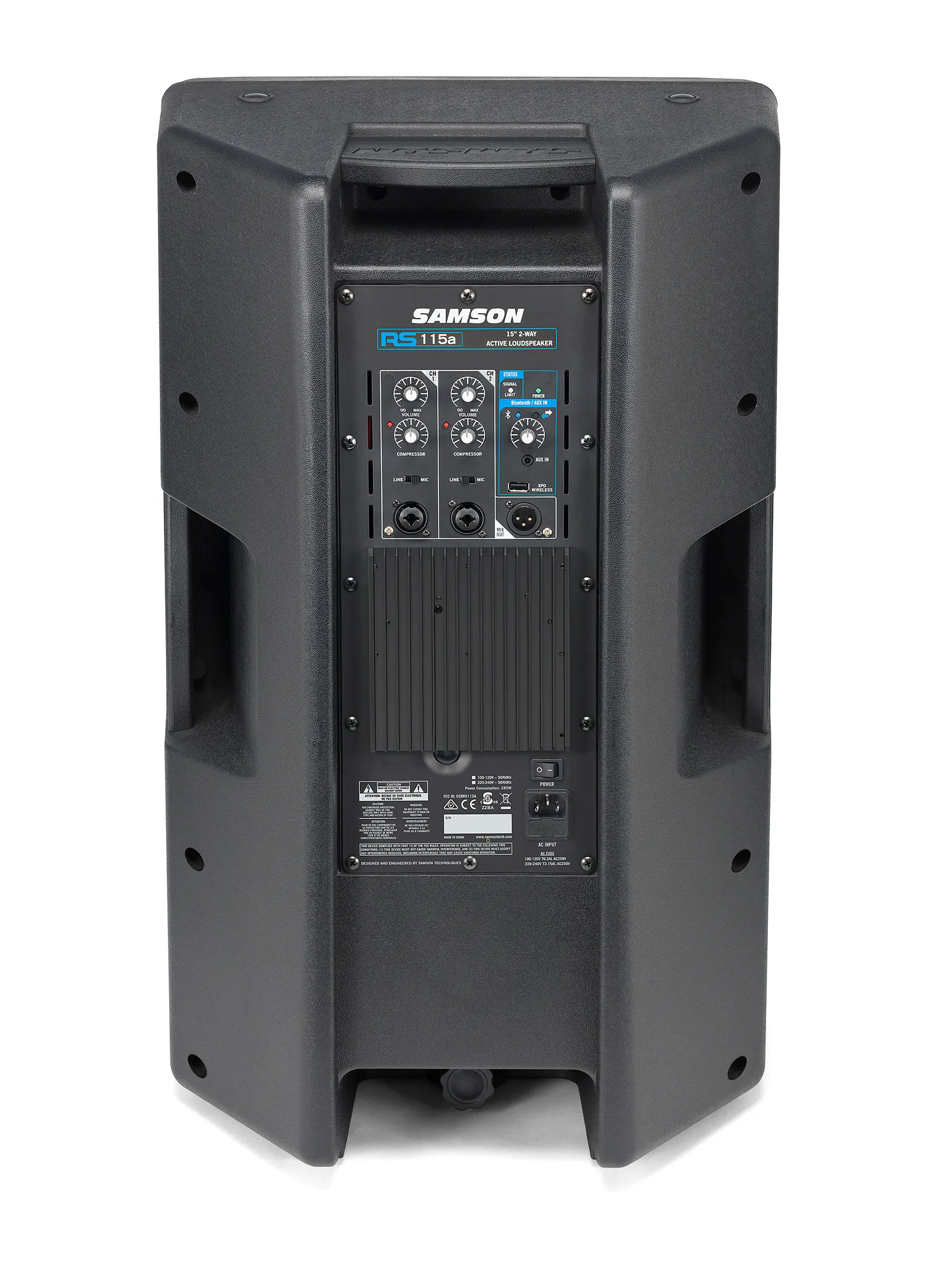

The RS115A speaker features an on-board mixer with two selectable mic/line XLR-1/4″ combo input channels with variable compressor controls. An additional channel provides a 1/8″ line level input, Bluetooth connectivity, and a USB wireless port for use with Samson XPD wireless microphone systems (sold separately). The RS115A also features an XLR mix output for daisy-chaining additional speakers to expand your sound system.
- 2-way active loudspeaker
- 400 watts Peak/200 watts RMS of power
- 15″ extended range low frequency driver with 2.5″ voice coil
- 1″ high frequency driver
- Two selectable Mic/Line XLR-1/4″ combo inputs with variable compressor controls
- Bluetooth connectivity to connect wireless music sources
- 1/8″ (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)
- XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
- Independent volume controls on all channels
- XLR Mix output for daisy chaining additional speakers
- Signal/Limit indicator
- Solid polypropylene enclosure with impact resistant design
- Three large ergonomic carry handles
- Integrated 1 3/8″ speaker stand mount
- Four M10 fly points
- Horizontal/Angled floor monitor positioning
- Full perforated metal grille protects all speaker components
Specifications
| Output Power | 400 Watts Peak /200 Watts RMS |
|---|---|
| Max. SPL (1M) | 116dB |
| Frequency Response | 50Hz – 20kHz |
| Low Frequency | 15” (381mm) Woofer, 2.5” (63.5mm) Voice Coil |
| High Frequency | 1” (25.4mm), 1” (25.4mm) Voice Coil |
| Crossover Frequency | 3kHz |
| Crossover Type | 18dB/Oct |
| Horn Coverage | 90°H x 60°V |
| Inputs | Balanced XLR–1/4” Combo, USB XPD Wireless |
| Output | Balanced XLR Line Output |
| Contour Equalization | 100Hz & 12kHz Boost |
| Electronic Protection | Thermal, Overload, Analog (Optical) Limiter, Compressor |
| Enclosure | Polypropylene |
| Grille | Full metal perforated |
| Handles | Two side, one top |
| Monitor Angle | 45° |
| Mounting Method | 1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints |
| Dimensions | 15.2” x 14” x 24.9” /386mm x 356mm x 631.5mm |
| Weight | 32.6lb / 14.8kg |
