Description
COLUMN ACTIVE LINE ARRAY
CLA604A is an extruded aluminum column speaker fitted with 6 x 4″ custom woofers and 4 x 1″ dome tweeters, each coupled to a wave guide. The internal Class D amplification, 400W for woofers and 100W for tweeters with switch mode power supply and DSP processor with 4 equalization presets provide unexpected dynamics in a system of these dimensions.
The rapid latching system with pins allows for the expansion of the system, doubling-up CLA604A modules to form a unified column with an absolute and coherent source integration and increase of SPL and low-frequency directivity control.
CLA system features:
- High-level sound quality from 50Hz to 20kHz expressly developed for live performance
- Long distance sound projection and better SPL distribution towards the audience
- Great and dynamic power performance thanks to tri-amplification system
- Lightweight and easy to carry
- Design and elegance for an easy integration even in the most demanding installations
- Very compact dimensions enable the listener to concentrate on sound and not on speakers!
- High horizontal dispersion
400W + 100W RMS 125dB SPL Column Active Line Array
- 2-way bi-amplified Line Array Column
- 6 x 4″ (100mm) custom woofer with 1″ (25 mm) voice coil
- 4 x 1″ (25mm) neodymium dome tweeter on waveguide
- 130Hz to 20KHz frequency response
- Class D 400Wrms amplifier for LF and 100Wrms for HF with switch mode power supply
- DSP processor with 4 available equalization presets
- Control panel with volume, presets, HP filter, Mic-Line, status LED
- XLR input and Neutrik POWERCONN supply input at the lower part of the column; XLR link and Neutrik POWERCONN loop output at the higher part, in order to hide each connection cable
- 100°H x 20°V dispersion
- Extruded-aluminum powder-coated cabinets. Superior latching system, enables the extension of the length of the line array by adding CLA604A modules for increased modularity of the system.
- Possibility to angle the columns of +/- 30° on a horizontal plane

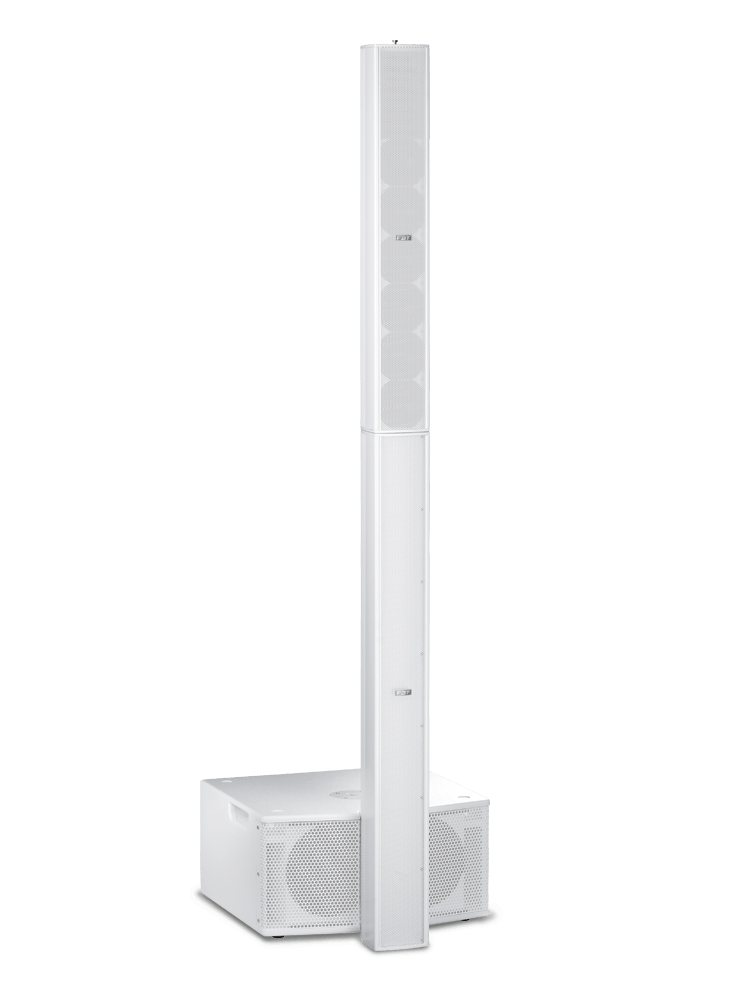

- Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation
- Easily expandable for a total power of 6600W (stereo system composed of 3 x CLA604A and 3 x CLA208SA)
- Very light and easy to carry

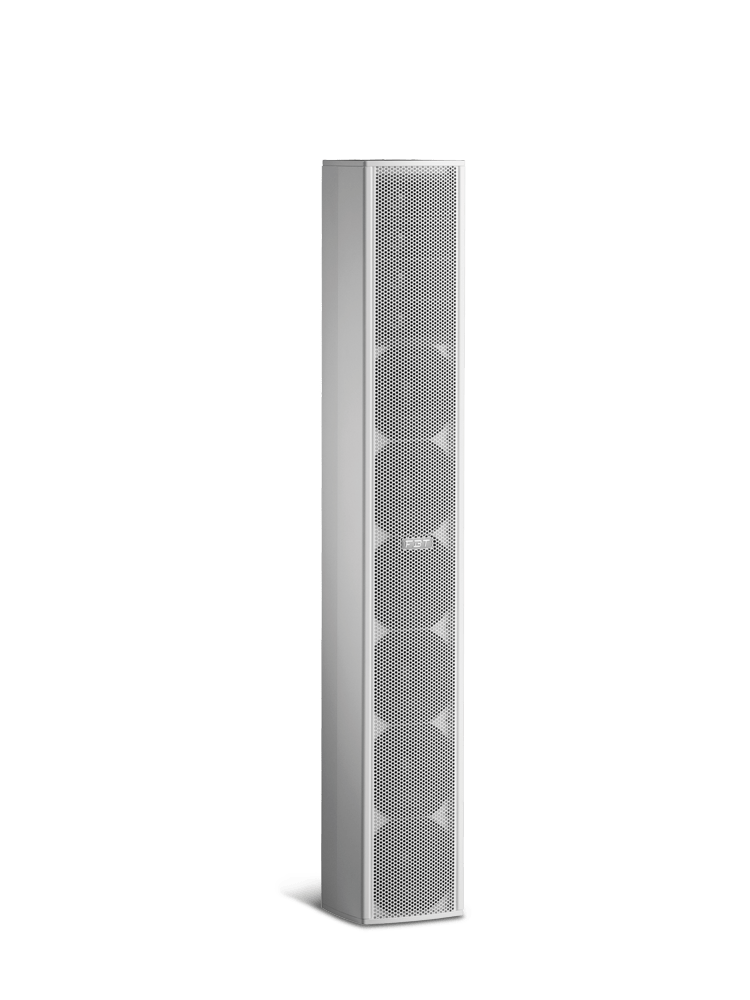

- Vertus is also available in white color
Technical Specifications
Code:34549 / 36892 (White)
Built-in amplifier LF/HF:400/100 W RMS
Built-in amplifier peak LF/HF:800/200 W
Frequency response:130Hz- 20kHz -6dB
Low frequency woofer:6 x 4\” – 1\” coil inch
High frequency driver:4 x 1\” – 1\” coil inch
Maximum SPL cont/peak:122/125 dB
Dispersion:100° x 20° H x V
Input impedance:22 Kohm
Crossover frequency:2.5 KHz
Ac power requirements:450 VA
Input connector:XLR with loop
Power cord:5 mm/inch
Net Dimension (WxHxD):130x841x130 / 5.12×33.1×5.12 mm/inch
Net weight:10,5 / 23,14 kg/lb
Transport Dimension (WxHxD):220x930x220 / 8.66×36.61×8.66 mm/inch
Transport weight:11.5 / 25.35 kg/lb
