Description
- Bi-amplified 2-way Active line array
- 4 x 165mm (6.5 “) custom woofers with 38mm (1.5”) coil
- Neodymium B&C compression HF driver with 36mm (1.4″) spout and 64mm (2.5″) coil
- Large format FBT waveguide with 90° (H) x 20° (V) dispersion
- Frequency response from 65Hz to 20KHz
- Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switch mode power supply
- DSP processor with 8 equalization presets
- Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
- Neutrik PowerCON TRUE1 IN and LINK power connectors
- Cabinet in 12mm (0.5″) birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches.

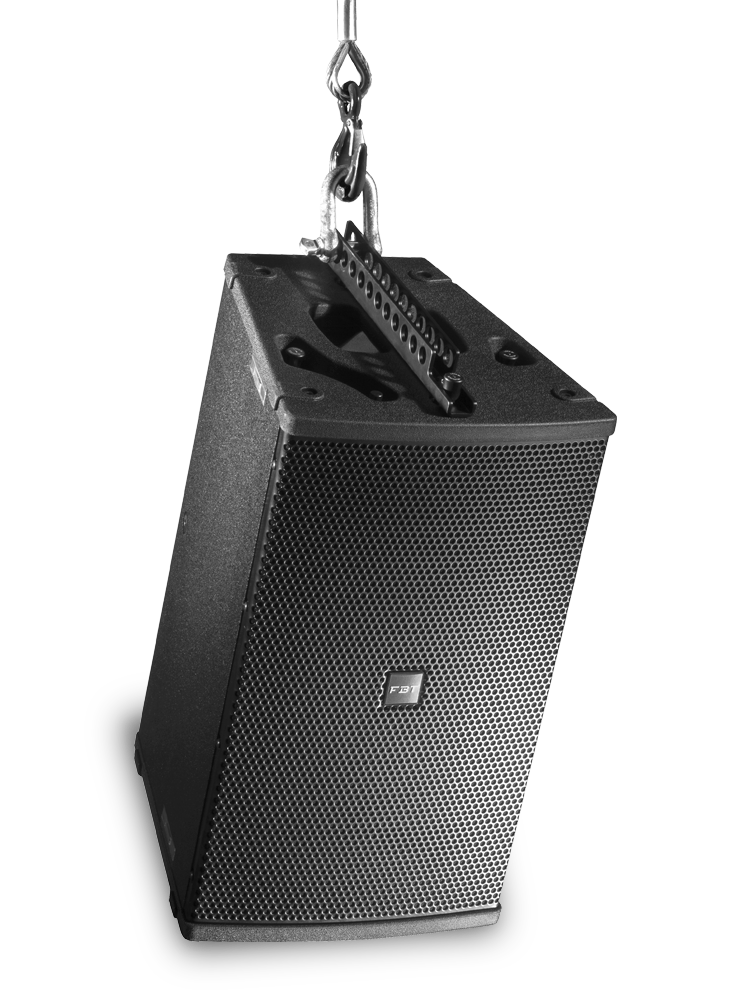

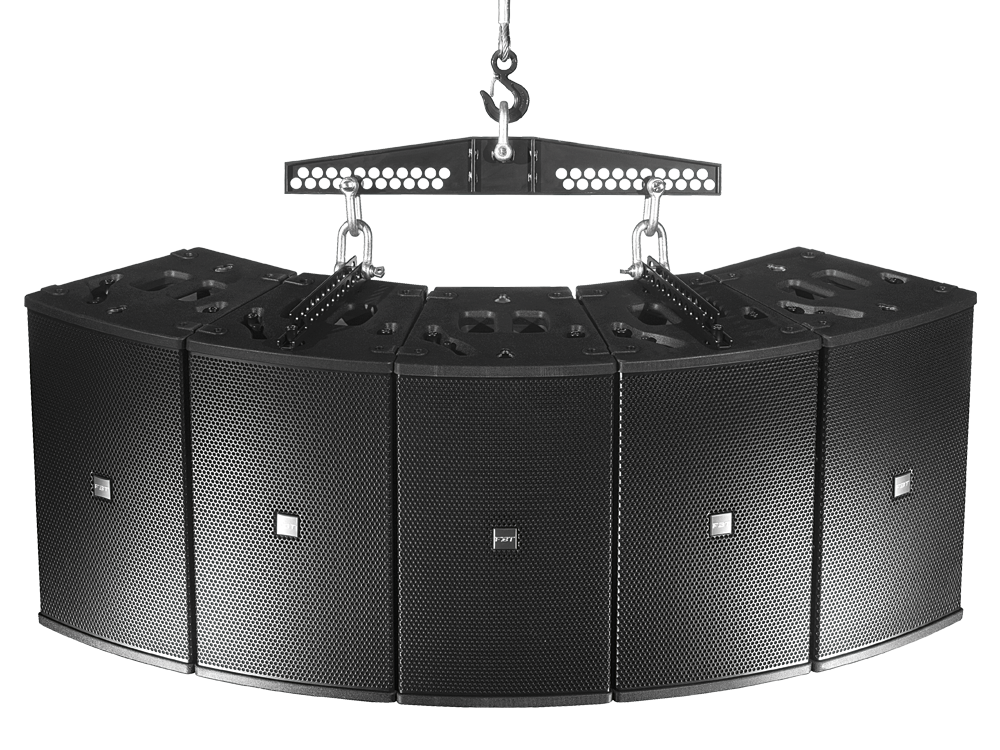

- Side suspension hardware with integrated setting pins, inclination between adjacent cabinets from 5° to 20° in 5° steps. Possibility of vertical and horizontal installation through dedicated flybars.

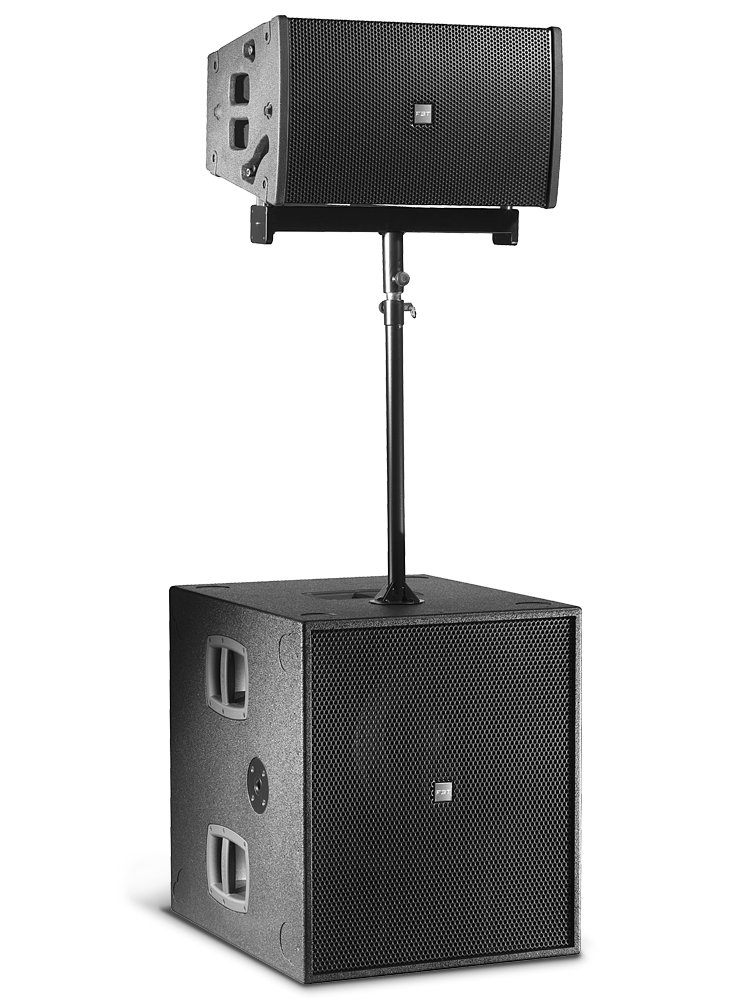

- Wide range of accessories for suspension, pole-mounting or ground-stacking.
- Ideal for both live applications, assisted by one or both subs of the VHA range, and for fixed installations
Technical Specifications
Code:41741
Built-in amplifier LF/HF:600/300 W RMS
Built-in amplifier peak LF/HF:1200/600 W
Frequency response:65Hz – 20KHz -6dB
Low frequency woofer:4X6.5 – 1.5 coil inch
High frequency driver:1×1.4 – 2.5 coil – neodymium inch
Maximum SPL cont/peak:128/133 dB
Dispersion:90×20 H x V
Input impedance:22 Kohm
Crossover frequency:1.2 KHz
Ac power requirements:640 VA
Input connector:XLR with loop
Power cord:5 mm/inch
Net Dimension (WxHxD):612x360x397 / 24.1×14.2×15.6 mm/inch
Net weight:29 / 63.9 kg/lb
Transport Dimension (WxHxD):695x440x475 / 27.4×17.3×18.7 mm/inch
Transport weight:33/72.7 kg/lb.
