X SUB118SA

Category:

Description

Processed Active Subwoofer

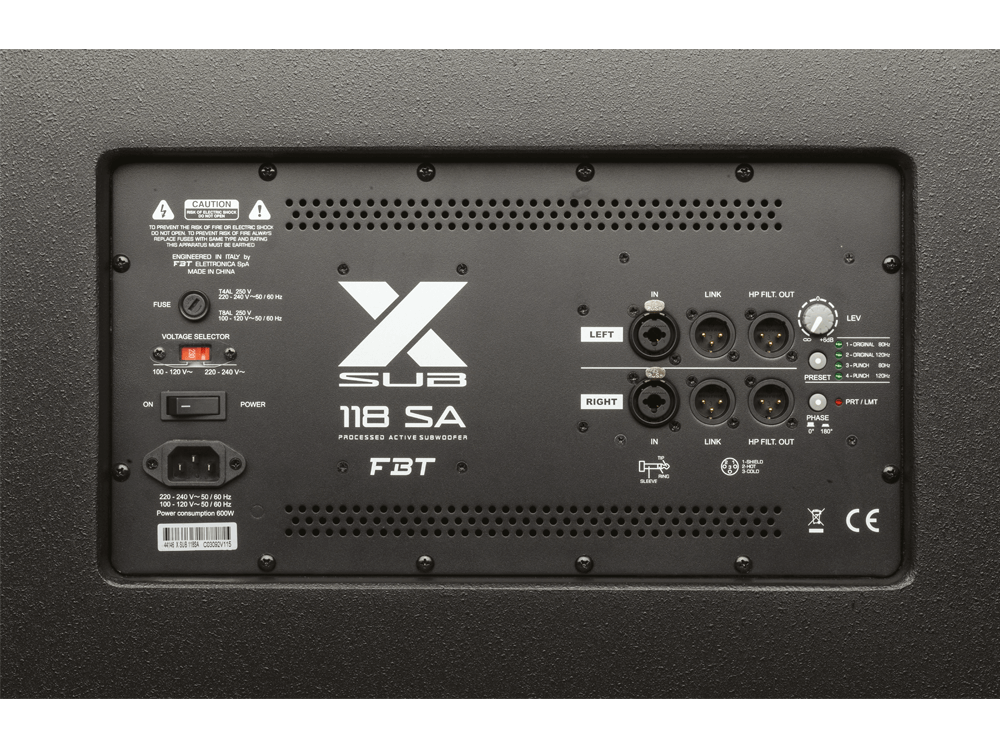

Featuring a single 18″ high-performance woofer, the X SUB 118SA is equipped with a 1200W Class D amplifier and a DSP with 4 presets, allowing for extensive customization of the low frequencies, extending to the mid-high range. The sturdy plywood construction is specifically designed to meet the most diverse needs, from touring to fixed installation. The M20 stand mount allows for the installation of a satellite speaker. Compact bass reflex subwoofer with high SPL and punch 460mm (18″) high-excursion woofer with a 75mm (3″) voice coil Frequency response from 38Hz to 120Hz 1200W Class D amplifier with switching power supply DSP processor with 4 presets, two responses with two different cut-off frequencies Control panel with XLR input and STEREO link, XLR Hi-Pass STEREO out, volume, presets, and phase 0°-180°, LED status 18mm birch plywood enclosure with scratch-resistant paint, stand mount M20 thread and two FBT aluminum handles, optional 100mm casters Ideal for reinforcing and extending the low end.

Technical Specifications

Code:44146
Configuration: bass reflex
Built-in amplifier LF/HF:1200W
Built-in amplifier peak LF/HF:
Frequency response:38Hz – 120Hz (@-6dB)
Low Frequency woofer:18” / 3” coil
Maximum SPL cont/peak:136dB half space
Dispersion: omnidirectional
Input impedance:22 kOhm
Crossover Frequency:
AC Power requirements:
Input connector: XLR with loop
Power cord:9.8ft / 3mt
Net Dimension (WxHxD):20,07 x 25,78 x 24,80 / 510 x 655 x 630
Net Weight:74,95 lbs / 34kg
