Description

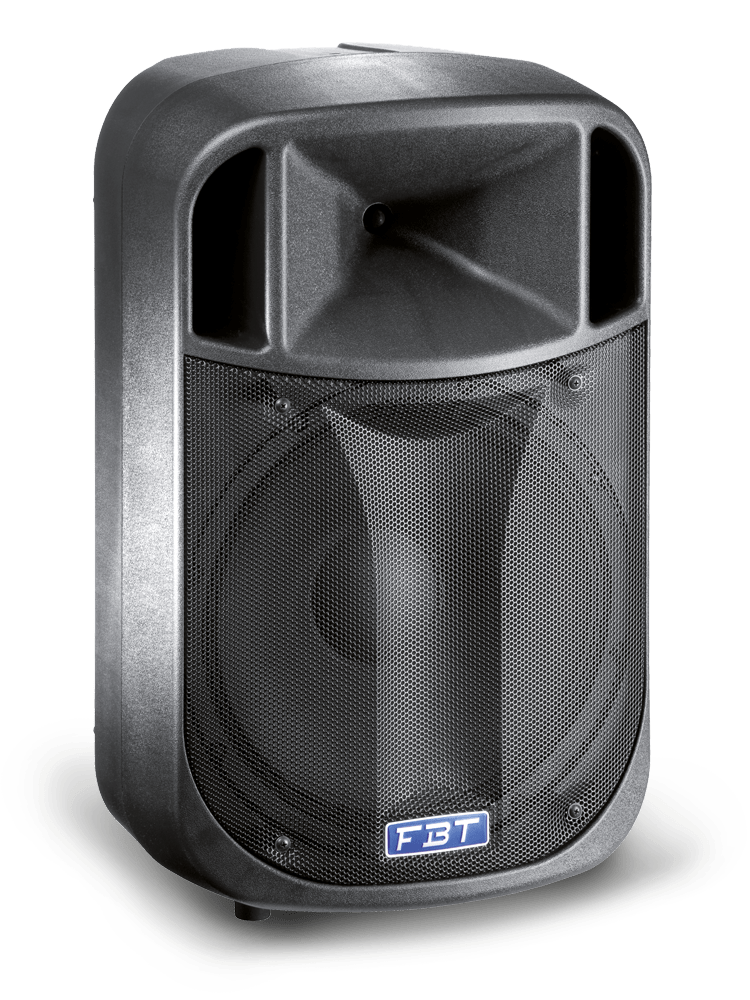

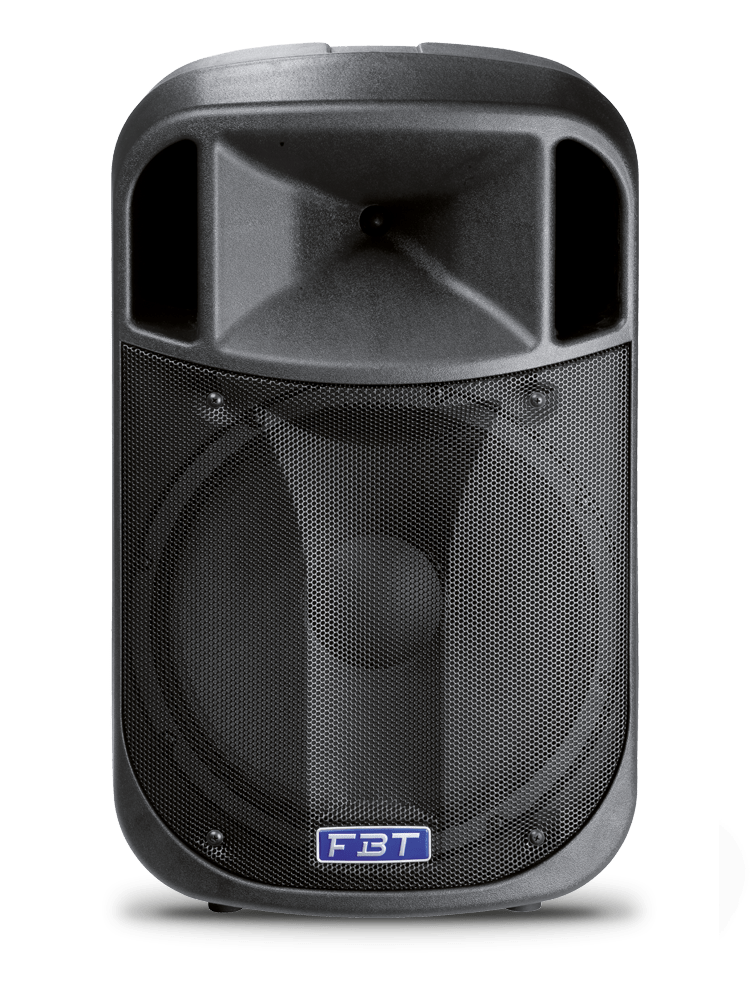

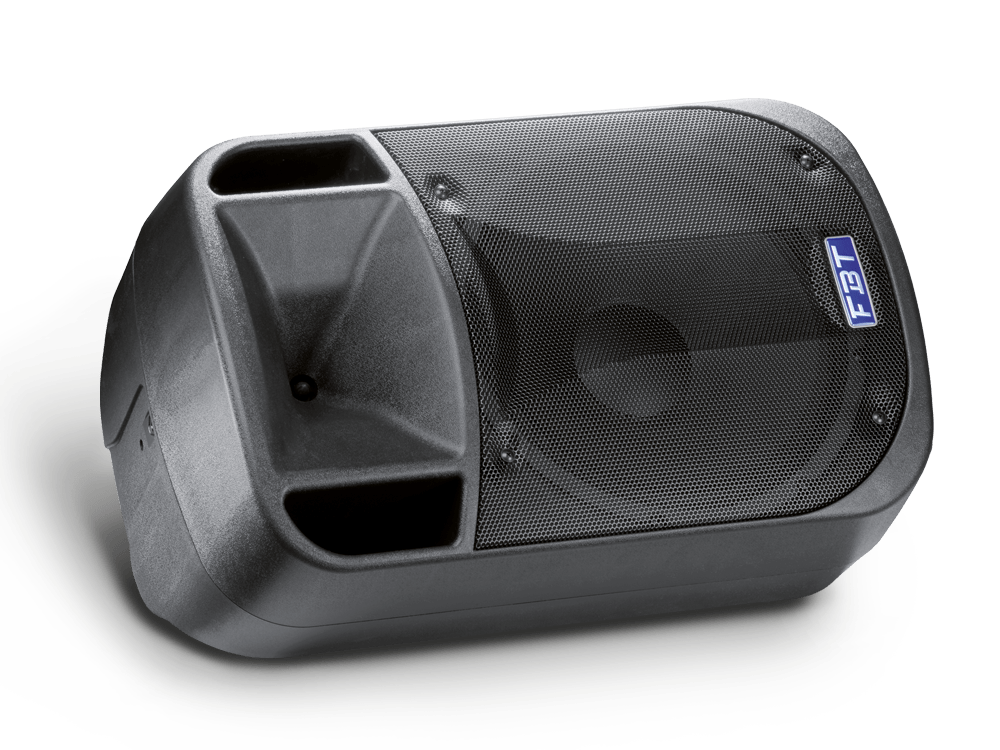

PROCESSED ACTIVE MONITOR 350W + 100W RMS – 129DB SPL
- 2-way bi-amplified system in Bass-Reflex2-way bi-amplified system in Bass-Reflex
- Polypropylene enclosure with integrated handle except J 5A/5
- 2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
- 25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
- 90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)?
Processed Active Monitor
350W+ 100W RMS – 129dB SPL
- 380mm (15’’) custom woofer with improved efficiency and linearity
- 350Wrms class D amplifier for LF and 100Wrms for HF.
- High efficiency switch mode power supply
- On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability.
- 4 DSP preset for maximum acoustical flexibility
Technical Specifications
Code:37704
Configuration:2 way
Built-in amplifier LF/HF:350 / 100 W RMS
Frequency response:48Hz – 20KHz -6dB
Low Frequency woofer:15 – 2 coil inch
High Frequency driver:1 – 1 coil inch
Maximum SPL cont/peak:125 / 129 dB
Dispersion:90° x 60° HxV
Input impedance:22 Kohm
Input connector: XLR-jack with loop
Power cord:5 / 16.4 m/ft
Net Dimension (WxHxD):410x663x387 – 16.14×26.10×15.23 mm/inch
Net Weight:14 / 30.86 Kg/lb
Transport Dimension (WxHxD):495x740x475 – 19.48×29.13×18.70 mm/inch
Transport Weight:17.1 / 37.69 Kg/lb
