PROCESSED ACTIVE SUBWOOFER 700W RMS – 130/133DB SPL
- Bass-reflex design with high SPL and punch
- 320mm (12”) high excursion magnet woofer with 75mm (3”) voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

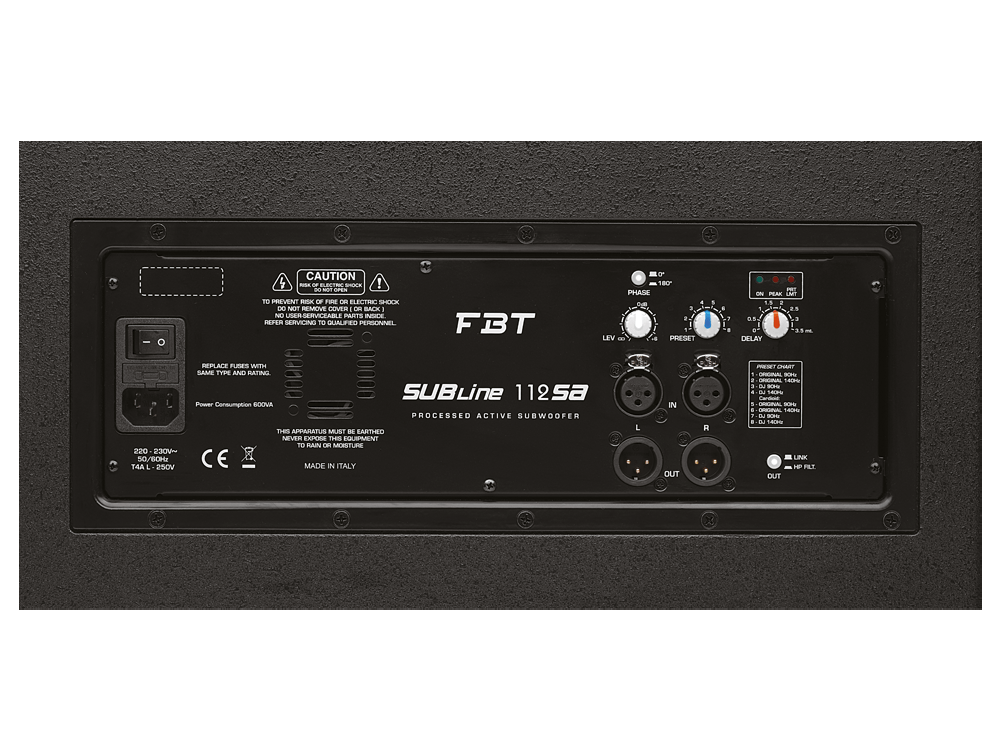

- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Technical Specifications
Code:41223
Configuration:1 way
Built-in amplifier LF/HF:700 W RMS
Built-in amplifier peak LF/HF:1400 W
Frequency response:42Hz – 140Hz -6dB
Low Frequency woofer:12 – 2.5 coil inch
Maximum SPL cont/peak:129/133 half-space dB
Dispersion:omnidirectional HxV
Input impedance:22 Kohm
Crossover Frequency:90 or 140Hz KHz
AC Power requirements:640 VA
Input connector:stereo XLR with loop, HP out
Power cord:5/16.4 m/ft
Net Dimension (WxHxD):430x447x480 / 16.9×21.5×18.9 mm/inch
Net Weight:23./50.7 kg/lb
Transport Dimension (WxHxD):530x547x580 / 20.9×21.5×22.8 mm/inch
Transport Weight:27/59.5 Kg/lb
