Description

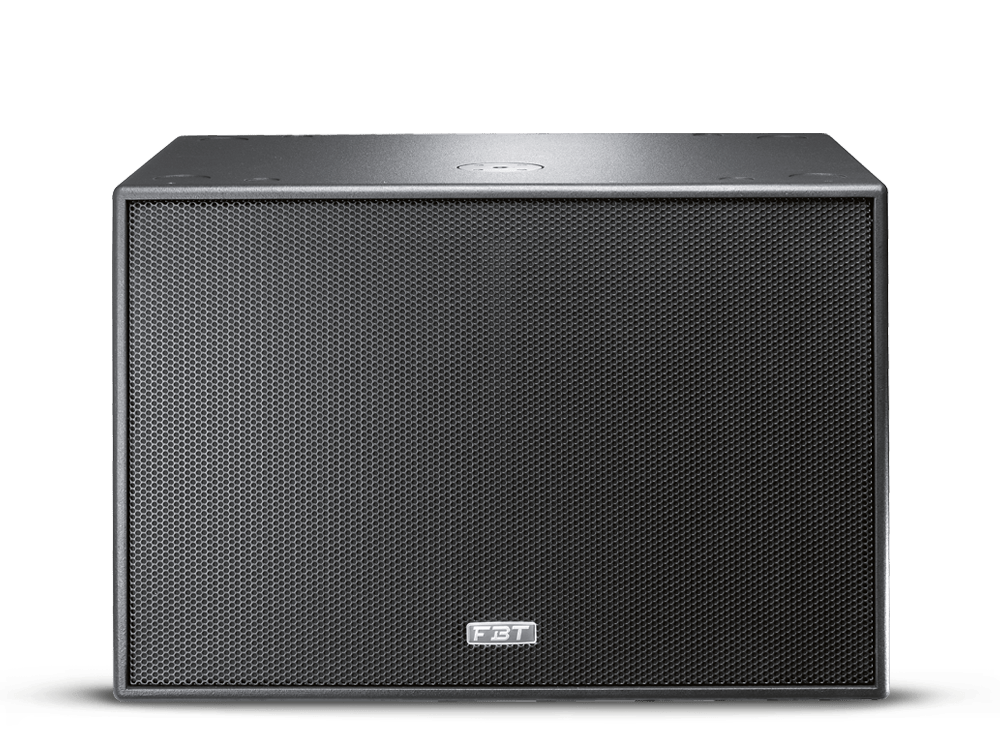

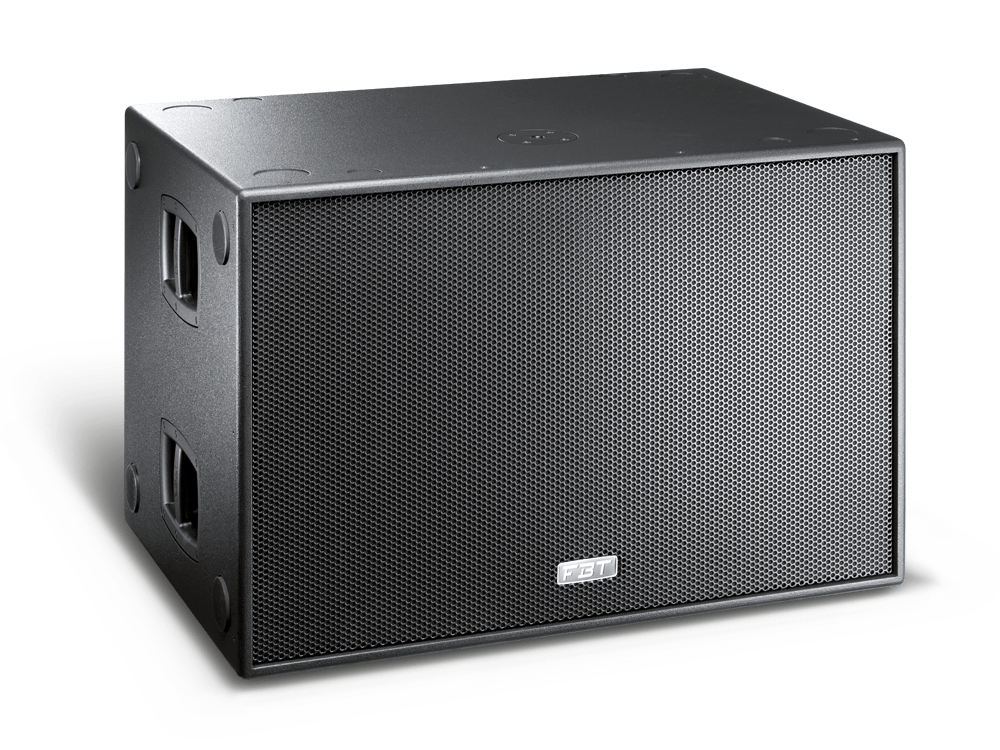

SUBLINE 218SA incorporates two 460mm B&C woofers and a 1200W class-D amplifier with a switch-mode power supply.
Processed active subwoofer 1200W RMS – 140dB SPL
- Bass-reflex design Subwoofer
- 2 x 460mm (18”) high excursion woofer with 75mm (3”) voice coil, custom made for FBT by B&C
- Frequency response from 30Hz to 120Hz
- 1200W RMS Class D power amplifier with switch mode power supply
- DSP with 6 presets, 3 x EQ with 2 x LPF crossover settings, 6-step digital delay line

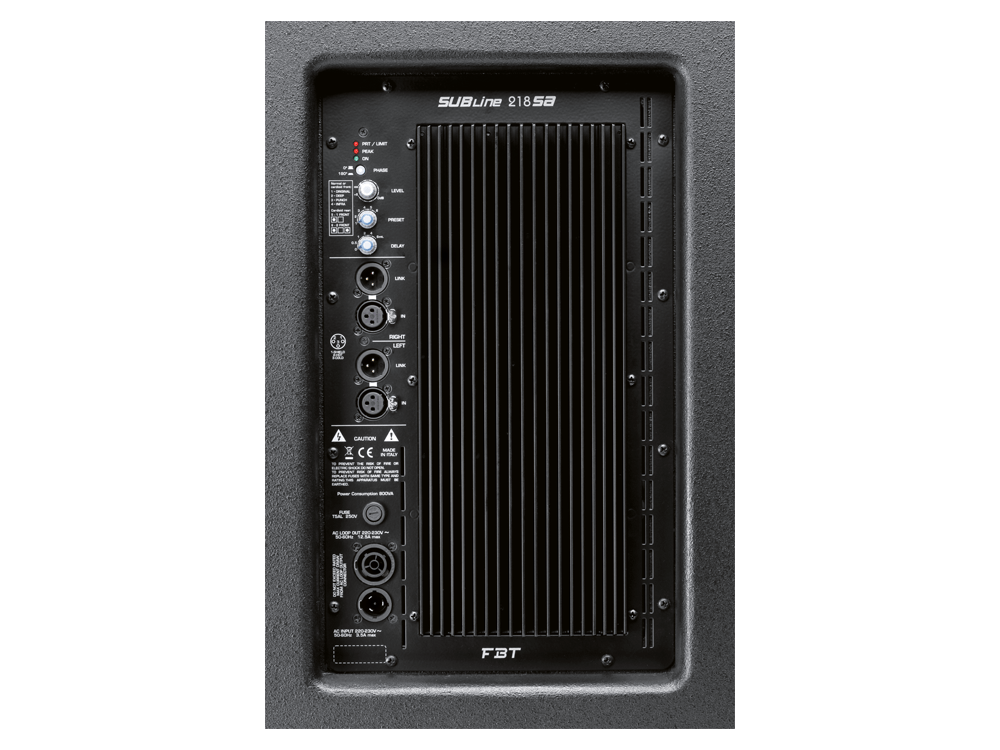

- Control panel with stereo XLR in/out, Volume. EQ presets, Delay, Phase reversal switch 0°-180°, 3 status LED indicators
- 18mm Baltic birch plywood enclosure with heavy duty coating
- 2 x M20 threads for stand pole mount and 4 x aluminum ergonomic FBT handles, optional wheels
- Provides additional low frequency extension when used along with MUSE 210LA active line array system
Technical Specifications
Code:38774
Configuration:1 way
Built-in amplifier LF/HF:1200 W RMS
Built-in amplifier peak LF/HF:2400 W
Frequency response:30Hz – 100Hz -6dB
Low Frequency woofer:2 x 460 – bobina 75 inch
Maximum SPL cont/peak:137 / 140 dB
Dispersion:omnidirezionale HxV
Input impedance:22 Kohm
Crossover Frequency:100 KHz
AC Power requirements:800 VA
Input connector:XLR con loop
Power cord:7 m/ft
Net Dimension (WxHxD):975 x 661 x 670 mm/inch
Net Weight:83 kg/lb
Transport Dimension (WxHxD):1150 x 830 x 800 mm/inch
Transport Weight:96 Kg/lb
