Description
PROCESSED ACTIVE MONITOR 80W + 40W RMS – 117DB SPL
- 2-way bi-amplified system in Bass-Reflex2-way bi-amplified system in Bass-Reflex
- Polypropylene enclosure with integrated handle except J 5A/5
- 2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
- 25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
- 90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)?

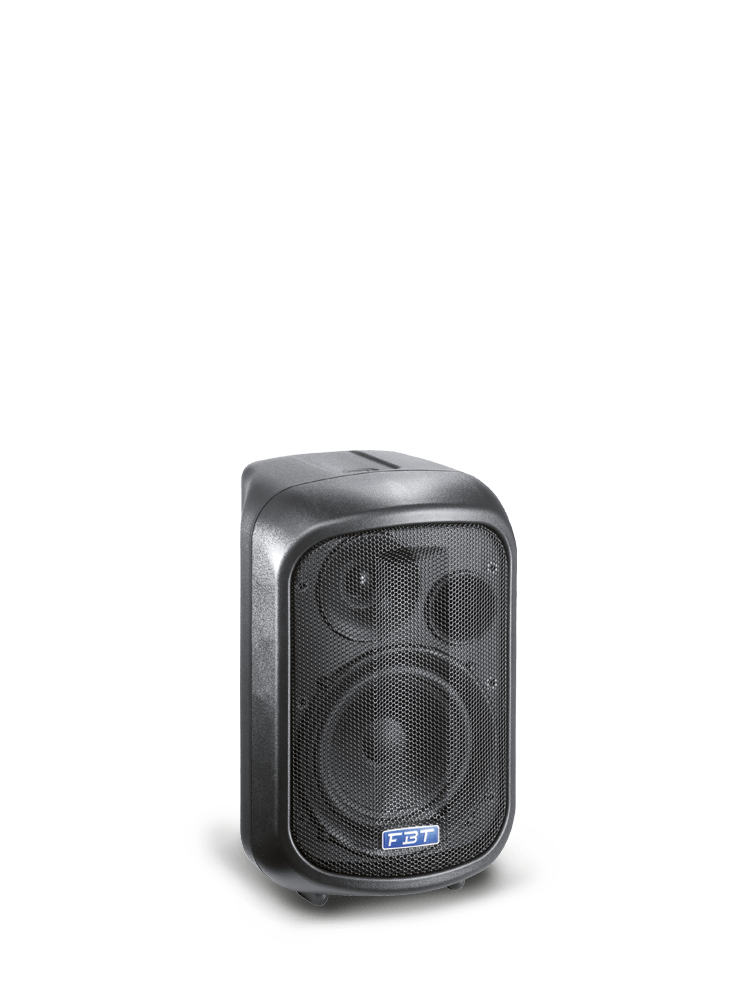

Processed Active Monitor
80W+ 40W RMS – 117dB SPL
- 130mm (5’’) custom woofer with improved efficiency and linearity
- 25mm (1’’) neodymium silk dome tweeter with soft compression and phase plug
- 80Wrms class D amplifier for LF and 40Wrms for HF.
- Low noise toroidal transformer power supply
- On-board analog signal processing with limiter for high SPL and high reliability.

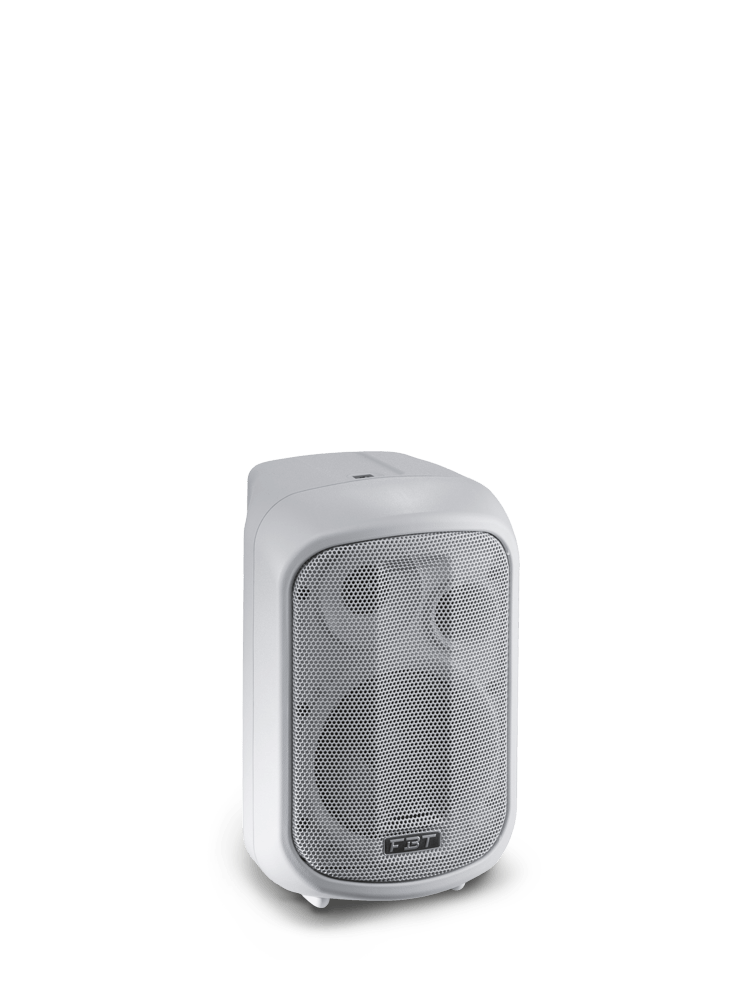

- Available in white color 5AW
Technical Specifications
Code:37687 / 37905 White
Configuration:2 way
Built-in amplifier LF/HF:80/40 W RMS
Frequency response:80Hz – 20KHz -6dB
Low Frequency woofer:5 – 1 coil inch
High Frequency driver:1 dome – 0.75 coil inch
Maximum SPL cont/peak:113 / 117 dB
Dispersion:90° x 90° HxV
Input impedance:22 Kohm

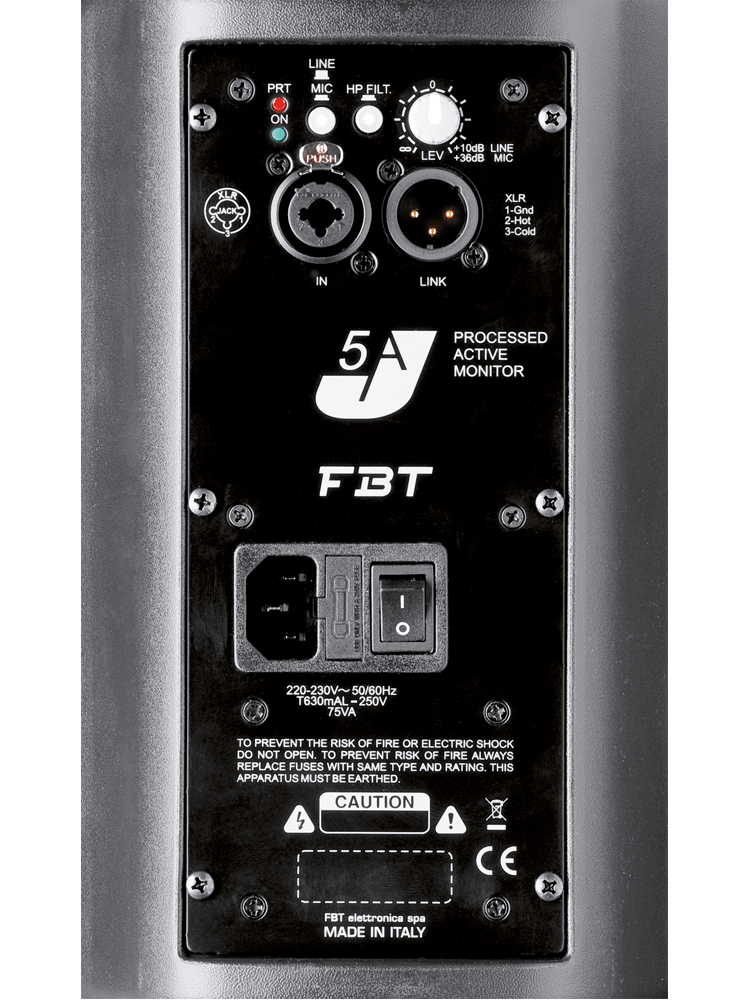

Input connector: XLR combo with loop
Power cord:5 / 16.4 m/ft
Net Dimension (WxHxD):170x275x180 – 6.69×10.82×7.08 mm/inch
Net Weight:3.4 / 7.49 Kg/lb
Transport Dimension (WxHxD):240x345x235 – 9.44×13.58×9.25 mm/inch
Transport Weight:4.2 / 9.25 Kg/lb
