Description

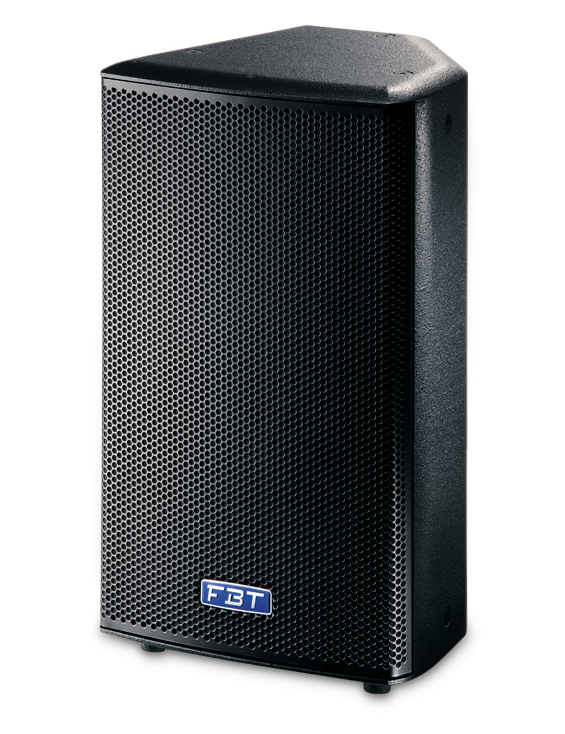

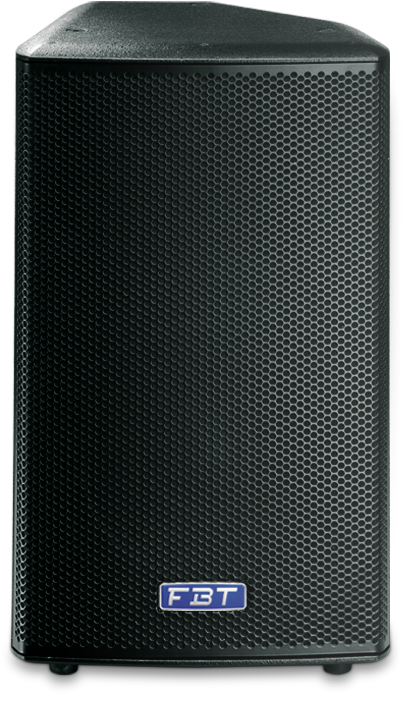

ACTIVE SPEAKER 600W + 300W RMS – 133DB SPL
- 2-way, bi-amplified, bass-reflex design
- 320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
- 25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
- Class D amplifiers, 600WRMS to the LF and 300WRMS to the HF, switch mode power supply
- Frequency response from 50Hz to 20KHz
- DSP with 8 eq presets
- Control panel with XLR input and link, volume, presets, HP filter, ground-lift
- 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
- Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminum handles
- Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
- Very lightweight, only 20Kg?
Technical Specifications
Code:31759
Configuration:2 way
Built-in amplifier LF/HF:600/300 W RMS
Frequency response:50Hz – 20Khz -6dB
Low Frequency woofer:1×12 – 3coil neodymium inch
High Frequency driver:1×1 – 1.7 coil inch
Maximum SPL cont/peak:126/133 dB
Dispersion:80°x50° HxV
Input impedance:22 Kohm
Input connector: XLR with loop
Power cord:5/16.4 m/ft
Net Dimension (WxHxD):300x660x380 – 15x26x15 mm/inch
Net Weight:20/45 Kg/lb
Transport Dimension (WxHxD):485x495x750 – 19.1×19.5×29.5 mm/inch
Transport Weight:22/48.5 Kg/lb
